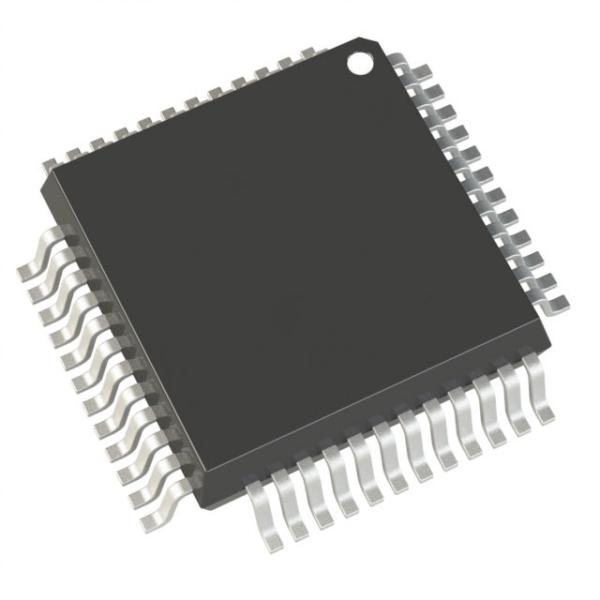

ADUC7060BSTZ32 Microcontroller Integrated Circuit MCU Low-Pwr Prec Analog Dual ADC Flash/EE

ADUC7060BSTZ32 Microcontroller Integrated Circuit MCU Low-Pwr Prec Analog Dual ADC Flash/EE

FEATURES

• Analog input/output
• Dual (24-bit) ADCs
• Single-ended and differential inputs Programmable ADC output rate (4 Hz to 8 kHz) Programmable digital filters
• Built-in system calibration
• Low power operation mode
• Primary (24-bit) ADC channel
• 2 differential pairs or 4 single-ended channels PGA (1 to 512) input stage
• Selectable input range: ±2.34 mV to ±1.2 V
• 30 nV rms noise
• Auxiliary (24-bit) ADC: 4 differential pairs or 7 single- ended channels
• On-chip precision reference (±10 ppm/°C) Programmable sensor excitation current sources
• 200 μA to 2 mA current source range Single 14-bit voltage output DAC
• Microcontroller
• ARM7TDMI core, 16-/32-bit RISC architecture JTAG port supports code download and debug Multiple clocking options
• Memory
• 32 kB (16 kB × 16) Flash/EE memory, including 2 kB kernel 4 kB (1 kB × 32) SRAM
• Tools
• In-circuit download, JTAG based debug Low cost, QuickStartTM development system
• Communications interfaces SPI interface (5 Mbps)
• 4-byte receive and transmit FIFOs UART serial I/O and I2C (master/slave) On-chip peripherals
• 4× general-purpose (capture) timers including Wake-up timer
• Watchdog timer
• Vectored interrupt controller for FIQ and IRQ
• 8 priority levels for each interrupt type Interrupt on edge or level external pin inputs
• 16-bit, 6-channel PWM General-purpose inputs/outputs
• Up to 14 GPIO pins that are fully 3.3 V compliant Power
• AVDD/DVDD specified for 2.5 V (±5%)
• Active mode: 2.74 mA (@ 640 kHz, ADC0 active) 10 mA (@ 10.24 MHz, both ADCs active)
• Rev. F Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarksandregisteredtrademarksarethepropertyoftheirrespectiveowners.

• Packages and temperature range
• Fully specified for −40°C to +125°C operation 32-lead LFCSP (5 mm × 5 mm)
• 48-lead LFCSP and LQFP
• Derivatives
• 32-lead LFCSP (ADuC7061)
• 48-lead LQFP and 48-lead LFCSP (ADuC7060)
• APPLICATIONS
• Industrial automation and process control Intelligent, precision sensing systems, 4 mA to 20 mA
• loop-based smart sensors

​GENERAL DESCRIPTION

The ADuC7060/ADuC7061 series are fully integrated, 8 kSPS, 24-bit data acquisition systems incorporating high performance multichannel sigma-delta (Σ-Δ) analog-to-digital converters (ADCs), 16-bit/ 32-bit ARM7TDMI® MCU, and Flash/EE memory on a single chip.

The ADCs consist of a primary ADC with two differential pairs or four single-ended channels and an auxiliary ADC with up to seven channels. The ADCs operate in single-ended or differential input mode. A single-channel buffered voltage output DAC is available on chip. The DAC output range is programmable to one of four voltage ranges.

The devices operate from an on-chip oscillator and a PLL gene- rating an internal high frequency clock up to 10.24 MHz. The microcontroller core is an ARM7TDMI, 16-bit/32-bit RISC machine offering up to 10 MIPS peak performance; 4 kB of SRAM and 32 kB of nonvolatile Flash/EE memory are provided on chip. The ARM7TDMI core views all memory and registers as a single linear array.

The ADuC7060/ADuC7061 contains four timers. Timer1 is a wake-up timer with the ability to bring the part out of power saving mode. Timer2 is configurable as a watchdog timer. A 16-bit PWM with six output channels is also provided. The ADuC7060/ ADuC7061 contains an advanced interrupt controller. The vectored interrupt controller (VIC) allows every interrupt to be assigned a priority level. It also supports nested interrupts to a maximum level of eight per IRQ and FIQ. When IRQ and FIQ interrupt sources are combined, a total of 16 nested interrupt levels is supported. On-chip factory firmware supports in-circuit serial download via the UART serial interface ports and nonintrusive emulation via the JTAG interface. The parts operate from 2.375 V to 2.625 V over an industrial temperature range of −40°C to +125°C.
